The manufacturing of high-quality molds requires precise machining processes to ensure dimensional accuracy and surface finish. Understanding what is moulding and the associated machining techniques is essential for producing molds that can consistently create high-quality parts. This guide details the conventional machining methods for different types of mold components, providing comprehensive insights into each process.
From rotational parts to plate components and various hole machining techniques, each process has specific requirements and best practices. What is moulding's efficiency and quality depend heavily on selecting the right machining methods for each component type. This resource covers these processes in detail, offering valuable information for manufacturing professionals.
Machining of Rotational Parts
Rotational mold components are cylindrical or conical parts that require precise turning operations. What is moulding's rotational parts include pins, bushings, sleeves, and various cylindrical inserts. These components often require tight tolerances and smooth surface finishes to ensure proper functionality within the mold assembly.
Turning Operations
The primary process for rotational parts is turning, performed on lathes. This process involves rotating the workpiece while a cutting tool removes material to create cylindrical shapes. What is moulding's turning operations can achieve tolerances as tight as ±0.001mm when using precision CNC lathes. The process typically starts with rough turning to remove excess material, followed by finish turning to achieve the final dimensions and surface finish.
Facing and Grooving
Facing operations create flat surfaces on the ends of cylindrical parts, ensuring they are perpendicular to the axis. Grooving cuts narrow channels into the workpiece for seals, O-rings, or assembly purposes. What is moulding's facing processes often use carbide inserts with specific geometries to achieve the required surface finish, typically between Ra 0.8 and Ra 3.2 μm for mold components.
Threading Processes
Many rotational mold components require threads for assembly. Threading can be performed using taps and dies for external threads or using thread-cutting tools on lathes. What is moulding's threading operations must ensure proper fit with mating components, often following standard thread forms such as metric, UNC, or UNF. Thread rolling is sometimes used for stronger threads on high-strength materials.
Grinding for Precision
After turning operations, critical rotational components often undergo cylindrical grinding to achieve higher precision. This process uses abrasive wheels to remove small amounts of material, achieving tolerances within ±0.0005mm and surface finishes as smooth as Ra 0.025 μm. What is moulding's precision grinding ensures proper fit and function, particularly for components that guide or locate other parts within the mold.
Material selection significantly impacts machining parameters for rotational parts. Common mold materials include tool steels such as P20, H13, and S7, each requiring specific cutting speeds, feeds, and tooling. What is moulding's material considerations also include heat treatment requirements, as many rotational components are hardened to improve wear resistance, which affects post-heat treatment machining processes.
Rotational Parts Machining Process Flow
Material Preparation
Cutting stock to appropriate length
Rough Turning
Removing excess material
Heat Treatment
Hardening and tempering as required
Finish Turning
Achieving final dimensions
Precision Grinding
Attaining tight tolerances
Inspection
Verifying dimensions and finish
Key Parameters for Rotational Machining
Machining of Plate Type Parts
Plate type mold components include mold bases,型腔板 (cavity plates), 型芯板 (core plates), and various support plates. These flat, often large components require precise milling operations to create the complex shapes and features necessary for mold functionality. What is moulding's plate type parts often serve as the foundation of the mold assembly, making their accurate machining critical to overall mold performance.
Surface Milling
The initial process for plate type parts is surface milling to create flat, parallel surfaces. This is typically performed on vertical machining centers (VMCs) or horizontal machining centers (HMCs) using face mills with multiple cutting inserts. What is moulding's surface milling operations aim for flatness tolerances within 0.05mm/m and surface finishes of Ra 1.6 to Ra 3.2 μm for most plate components.
Contour Milling
Contour milling creates the outer profiles and complex shapes of plate components using end mills and ball nose mills. CNC machining centers with 3-axis or 5-axis capabilities are used to produce intricate geometries with high precision. What is moulding's contour milling often involves multiple passes, starting with roughing to remove large volumes of material efficiently, followed by semi-finishing and finishing passes to achieve final dimensions.
Pocket Machining
Pockets are recessed areas in plate components that house other mold elements. Pocket machining uses end mills to create these features, often with specific corner radii and depth requirements. What is moulding's pocket machining requires careful consideration of tool path strategies to minimize tool deflection and ensure consistent wall thickness and bottom surface finish.
Surface Grinding
After milling, critical plate surfaces often undergo surface grinding to achieve higher flatness and surface finish. This process uses abrasive wheels on surface grinders to remove small amounts of material uniformly. What is moulding's surface grinding can achieve flatness within 0.005mm/m and surface finishes as smooth as Ra 0.025 μm for mating surfaces that require tight seals or precise alignment.
Plate type parts often require large machining envelopes, necessitating the use of large-bed CNC machining centers. What is moulding's plate machining operations must account for material removal rates that generate significant heat, requiring adequate coolant systems and sometimes strategic pauses to prevent thermal distortion. Fixturing is also critical, with vacuum chucks, T-slot clamps, or custom fixtures used to secure large plates during machining.
Plate Type Parts Machining Considerations
Material Selection
Mold plates typically use P20, 718H, or H13 depending on application and wear requirements
Flatness Control
Critical for proper mold closing and preventing flash in what is moulding processes
Tool Selection
Carbide inserts with proper coatings for high-speed machining of hardened steels
Machining Strategy
Roughing with high material removal rates followed by finish passes
Heat Management
Adequate coolant systems to prevent thermal distortion during machining
Inspection
Coordinate measuring machines (CMM) for verifying complex geometries
Plate Machining Tolerances by Feature
Hole Machining Methods
Hole machining is a fundamental process in mold manufacturing, creating openings for guides, ejectors, fasteners, and cooling channels. What is moulding's hole quality directly impacts mold performance, as poorly machined holes can cause alignment issues, leakage, or premature wear. Various techniques are employed depending on hole size, depth, tolerance requirements, and material properties.

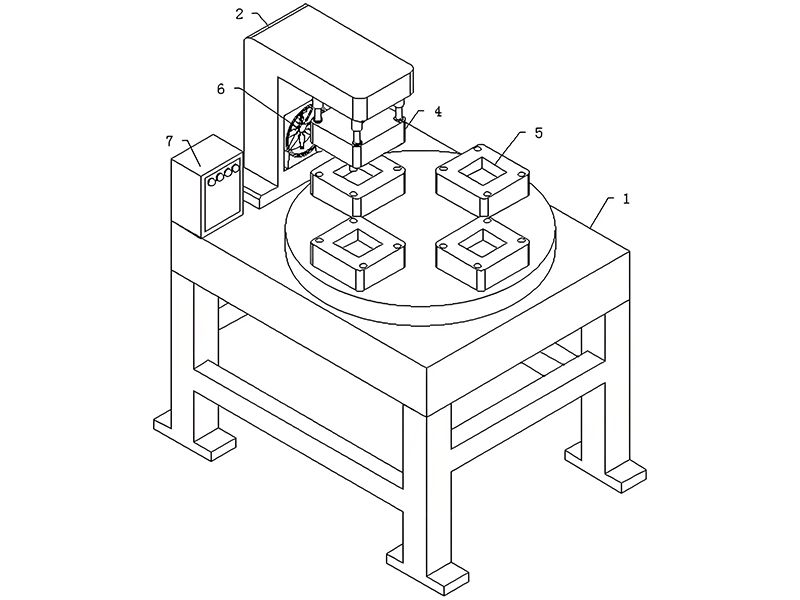

Drilling Operations
Drilling creates cylindrical holes using rotating drill bits. For mold components, precision drills with carbide tips are commonly used to achieve accurate diameters and good surface finish. What is moulding's drilling operations may use high-speed steel (HSS) drills for softer materials or carbide drills for hardened steels. Peck drilling—where the drill is retracted periodically—is often used for deep holes to remove chips and prevent overheating.
Reaming for Precision
Reaming follows drilling to improve hole dimensional accuracy and surface finish. Reamers are multi-fluted tools that remove small amounts of material (typically 0.1-0.3mm) to achieve tight tolerances, often within ±0.01mm. What is moulding's reaming operations are critical for holes that require precise fits, such as guide pin holes and bushing bores. The process can achieve surface finishes of Ra 0.8 to Ra 1.6 μm.
Boring Techniques
Boring enlarges existing holes to precise diameters using single-point cutting tools. This process is particularly useful for larger holes (typically over 20mm) and for achieving high concentricity and straightness. What is moulding's boring operations can be performed on lathes for rotational parts or on milling machines using boring heads for plate components. CNC boring allows for precise control of hole dimensions and can create tapered or stepped holes.
Counterboring and Countersinking
Counterboring creates a stepped hole to recess fastener heads below the surface, while countersinking creates a conical recess for flat-head screws. These operations use specialized tools that combine drilling and countersinking/counterboring in a single operation. What is moulding's counterboring and countersinking ensure proper fastener seating, which is critical for maintaining flatness between mating mold components.
Honing for Surface Finish
Honing is a superfinishing process that improves hole surface finish and roundness using abrasive stones. This process is used for critical holes where tight tolerances and superior surface quality are required, such as guide bushings and precision locating holes. What is moulding's honing operations can achieve roundness within 0.001mm and surface finishes as smooth as Ra 0.025 μm, reducing friction and improving wear resistance.
Hole machining in mold components often requires consideration of positional accuracy relative to other features. What is moulding's multi-axis CNC machines allow for precise hole placement with positional tolerances as tight as ±0.005mm. For deep holes (depth-to-diameter ratio greater than 5:1), gun drilling techniques may be employed to maintain straightness and accuracy throughout the hole depth.
Hole Machining Process Comparison
| Process | Tolerance | Surface Finish | Typical Applications |
|---|---|---|---|
| Drilling | ±0.05mm | Ra 3.2-6.3μm | Through holes, fastener holes |
| Reaming | ±0.01mm | Ra 0.8-1.6μm | Guide holes, precision fits |
| Boring | ±0.005mm | Ra 1.6-3.2μm | Large diameter holes, stepped holes |
| Honing | ±0.001mm | Ra 0.025-0.8μm | Precision bearing surfaces, seals |
Hole Quality Factors in What is Moulding
Hole Machining Examples
Practical examples of hole machining in mold components demonstrate the application of various techniques to achieve specific design requirements. What is moulding's hole features serve multiple purposes, from guiding moving components to facilitating cooling, and each application demands specific machining approaches to ensure functionality and longevity.
Guide Pin and Bushing Holes
Guide pin and bushing holes are critical for maintaining alignment between mold halves during operation. These holes require precise dimensional control and excellent surface finish to ensure smooth movement and prevent premature wear. What is moulding's guide holes typically use a combination of drilling, reaming, and honing processes to achieve their final specifications.
The process begins with center drilling to create a precise starting point, followed by drilling to a diameter slightly smaller than the final size. A reamer then brings the hole to its finished diameter with a tolerance of H7 (hole basis, medium fit). Finally, honing improves the surface finish to Ra 0.4 μm and ensures roundness within 0.001mm. This combination of processes creates a hole that provides accurate guidance while minimizing friction between the guide pin and bushing.
Cooling Channel Holes
Cooling channel holes circulate coolant through the mold to control temperature during the molding process. These holes often have complex paths and must be free of obstructions that could impede coolant flow. What is moulding's cooling channels require smooth internal surfaces to prevent turbulent flow and ensure efficient heat transfer.
Drilling is the primary process for cooling channels, with gun drilling used for deep, small-diameter holes. For straight sections, conventional drilling with carbide drills achieves the required diameter, typically with a tolerance of ±0.1mm. The surface finish is usually Ra 3.2 μm, which is sufficient for unobstructed coolant flow. When channels require bends, multiple straight sections are drilled from different directions and connected using plugs or by electrical discharge machining (EDM) to create smooth transitions.

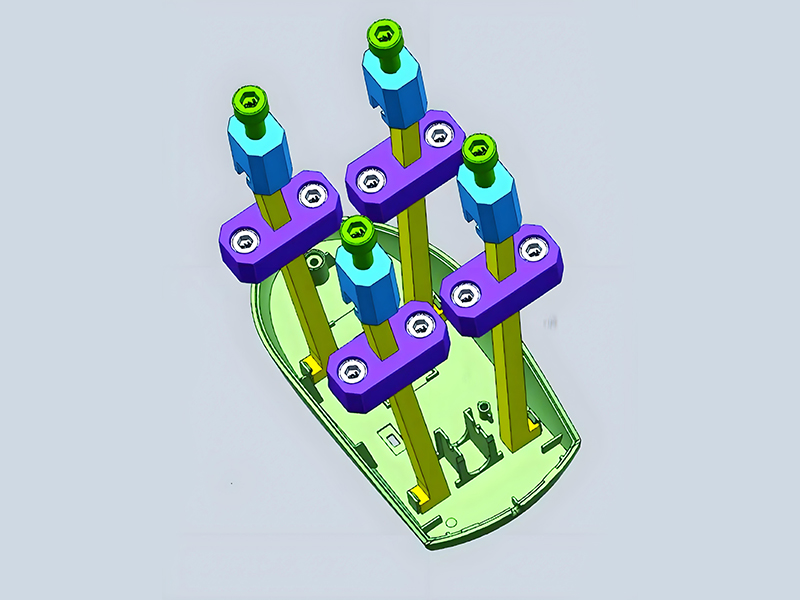

Ejector Pin Holes
Ejector pin holes guide the pins that push molded parts out of the mold cavity. These holes must provide a precise fit to prevent plastic leakage while allowing smooth movement of the ejector pins during the ejection cycle. What is moulding's ejector holes balance the need for clearance with the requirement for proper alignment.
The machining process starts with drilling to a slightly undersized diameter, followed by reaming to achieve the final dimension with a tolerance of H8. This provides a controlled clearance between the ejector pin (typically with an f7 tolerance) and the hole. The surface finish is usually Ra 1.6 μm to minimize friction and wear. For critical applications, a final honing step may be added to improve roundness and surface quality, extending the service life of both the ejector pins and their guide holes.
Threaded Holes
Threaded holes are used to secure mold components together using screws and bolts. These holes require precise thread forms and proper depth to ensure adequate engagement and clamping force. What is moulding's threaded holes must be positioned accurately to ensure proper alignment of assembled components.
The process begins with drilling a pilot hole to the correct diameter (based on the thread size and material). For mold steels, a tap drill size that provides 75% thread engagement is typically used. After drilling, the hole is tapped using cutting taps or forming taps, depending on material hardness. Cutting taps are used for harder materials, while forming taps (which displace material rather than cutting it) are preferred for softer materials and can produce stronger threads. Threaded holes are often chamfered at the entrance to facilitate screw insertion and prevent thread damage.
Hole Machining Sequence for Critical Applications
-
1
Layout and Marking
Precise positioning using coordinate measuring or CNC program alignment
-
2
Center Drilling
Creating a precise starting point to ensure hole accuracy
-
3
Rough Drilling
Removing most material while leaving stock for finishing operations
-
4
Heat Treatment
Hardening the material to required specifications when needed
-
5
Finish Drilling/Reaming
Achieving final dimensions with tight tolerances
-
6
Special Operations
Tapping, counterboring, or honing as required by design
-
7
Inspection
Verifying dimensions, position, and surface finish
Hole Machining Challenges and Solutions
Hole Taper (Dimensional Variation)
Solution: Use shorter, rigid tools and reduce feed rates for deep holes
Poor Surface Finish
Solution: Use proper coolant, ensure sharp tools, and optimize cutting parameters
Hole Misalignment
Solution: Use CNC machines with high positional accuracy and proper fixturing
Chip Evacuation Issues
Solution: Implement peck drilling cycles and use through-tool coolant systems
Tool Wear in Hard Materials
Solution: Use carbide or ceramic tools with appropriate coatings and reduced speeds
Summary of Mold Component Machining Processes
The machining of mold components requires a combination of processes tailored to each part's geometry and functional requirements. From rotational parts requiring precise turning and grinding to plate components needing accurate milling and surface finishing, each process contributes to the final mold's performance. What is moulding's success depends on selecting the right machining techniques for each feature, particularly holes, which serve multiple critical functions in mold operation.
Modern CNC machining centers, combined with advanced cutting tools and techniques, enable the production of mold components with tight tolerances and excellent surface finishes. What is moulding's quality standards continue to rise, driving the need for greater precision and efficiency in machining processes. By understanding and implementing these conventional machining methods effectively, manufacturers can produce high-quality molds that deliver consistent, reliable performance in production environments.
