Advanced Mold Part Processing Technologies
Precision techniques for high-quality molding components that define modern manufacturing excellence
Mold Processing Technology Comparison

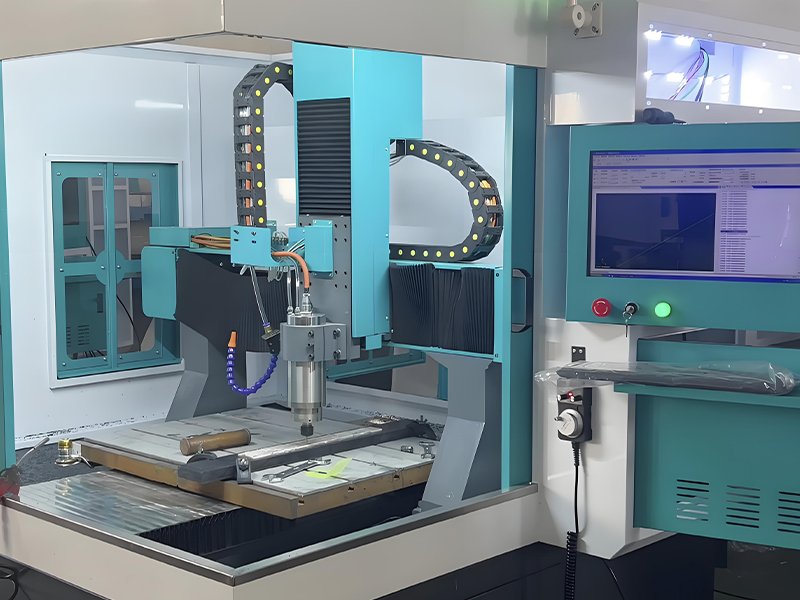

CNC Engraving
CNC engraving represents the pinnacle of precision in modern mold manufacturing, offering unparalleled accuracy for complex molding components. This computer-controlled process utilizes high-speed rotating tools to carve intricate designs and dimensions into various mold materials with exceptional repeatability.
The technology has revolutionized the molding industry by enabling the production of highly detailed mold cavities and cores that would be nearly impossible to create with traditional manual methods. CNC engraving systems can achieve tolerances as tight as ±0.001mm, making them indispensable for producing molds that require exacting specifications.
Modern CNC engraving machines employ advanced software that converts 3D CAD models into precise toolpaths, ensuring that every detail of the design is accurately reproduced on the mold surface. This seamless integration between design and production significantly reduces lead times in the molding process while maintaining the highest quality standards.
Materials commonly processed using CNC engraving for molding applications include hardened steels, aluminum alloys, copper, and various composite materials. The choice of cutting tools, speeds, and feeds is carefully selected based on the material properties and the required surface finish, ensuring optimal results for each specific molding application.
One of the key advantages of CNC engraving in molding is its ability to produce complex geometries with consistent quality across multiple mold components. This consistency is crucial for ensuring proper fit and function in multi-part molds, directly impacting the quality of the final molded products.
Key Advantages in Molding Applications:
- Sub-micron precision ideal for intricate molding details
- Exceptional surface finish reducing post-processing needs
- High repeatability ensuring consistent molding results
- Compatibility with a wide range of mold materials
- Seamless integration with CAD systems for complex molding designs
- Reduced setup times compared to traditional engraving methods
Chemical Etching
Chemical etching, also known as chemical milling, is a highly precise subtractive manufacturing process widely used in the molding industry for creating complex shapes and features on metal mold components. This technology employs chemical solutions to selectively remove material from the workpiece, offering unique advantages for specific molding applications.
The process begins with cleaning and preparing the mold surface, followed by the application of a protective mask (or resist) that is precisely patterned using photolithographic techniques. The masked workpiece is then immersed in a chemical etchant bath, which dissolves the unprotected areas of the metal, creating the desired features in the molding surface.
In molding applications, chemical etching excels at producing shallow, intricate patterns such as texture finishes, logos, and detailed surface features that would be challenging or impossible to achieve with mechanical methods. This makes it particularly valuable for creating molds that produce visually appealing or functionally textured molded parts.
Unlike mechanical processes, chemical etching does not introduce mechanical stress or burrs into the mold material, preserving the integrity of the metal and reducing the risk of cracking or fatigue in high-production molding environments. This stress-free processing is especially beneficial for thin-walled mold components.
Modern chemical etching for molding applications utilizes computer-controlled processes and precise chemical formulations to achieve consistent results with tight tolerances. The technology continues to evolve, with advancements in etchant chemistry and masking materials expanding its capabilities in the ever-demanding field of precision molding.
Materials Suitable for Etching:
- Stainless steels (304, 316)
- Carbon steels and tool steels
- Aluminum and aluminum alloys
- Copper and copper alloys
- Titanium and its alloys
Typical Molding Applications:
- Texture patterns for grip and aesthetic enhancement in molded parts
- Logo and branding integration directly into mold surfaces
- Flow channels and venting systems in injection molds
- Micro-features for specialized molding applications
Polishing
Polishing is a critical finishing process in mold manufacturing that directly impacts the quality, functionality, and aesthetic appeal of molded products. This precision technique involves refining the surface of mold components to achieve specific roughness values, optical properties, and release characteristics essential for successful molding operations.
The polishing process for molds typically progresses through several stages, starting with coarser abrasives to remove machining marks and imperfections, followed by progressively finer abrasives to achieve the desired surface finish. For high-gloss molding applications, the final stages may involve diamond compounds and specialized polishing tools to create mirror-like surfaces.
In injection molding, the surface finish of the mold directly transfers to the molded part. A poorly polished mold can result in defects such as flow lines, weld lines, and difficulty in part ejection, significantly impacting production efficiency and product quality. Conversely, properly polished molds reduce friction, improve material flow, and facilitate easier release of molded components.
Modern polishing techniques for molding applications combine traditional hand polishing skills with advanced mechanical and ultrasonic polishing systems. Computer-controlled polishing machines can achieve consistent results across complex mold geometries, ensuring uniform surface quality that is essential for multi-cavity molds and high-volume production runs.
The choice of polishing method depends on various factors including the mold material, the required surface finish specification, the complexity of the mold geometry, and the specific molding application. For medical and optical molding applications, where extremely high surface quality is required, specialized polishing processes are employed to achieve the necessary standards of cleanliness and precision.
Surface Finish Standards for Molding:
| Finish Type | Ra Value (μm) | Common Molding Applications |
|---|---|---|
| Matte | 1.6 - 3.2 | Functional parts, hidden components |
| Satin | 0.8 - 1.6 | Consumer products, general molding |
| Semi-gloss | 0.2 - 0.8 | Visible components, cosmetic parts |
| High-gloss | 0.025 - 0.2 | Automotive interiors, premium goods |
| Mirror | < 0.025 | Optical components, high-end molding |
Surface Sandblasting
Surface sandblasting is a versatile abrasive process used in mold manufacturing to prepare surfaces, create specific textures, and improve the performance of molding components. This technique involves propelling fine abrasive particles at high velocity against the mold surface, resulting in controlled surface modification that enhances both functionality and aesthetics in molding applications.
In the molding industry, sandblasting serves multiple purposes, from cleaning and preparing new mold surfaces prior to polishing or coating, to creating specific texture patterns that will be transferred to the molded parts. The ability to precisely control the abrasive media, pressure, and exposure time allows for consistent and repeatable surface finishes across production runs.
The choice of abrasive media is critical and depends on the desired surface finish and the mold material. Common media used in molding applications include aluminum oxide, silicon carbide, glass beads, and ceramic particles. Each media type produces distinct surface characteristics, from aggressive etching to gentle cleaning, allowing for customization based on specific molding requirements.
Sandblasting is particularly valuable for preparing mold surfaces prior to coating or bonding operations, as it creates an ideal micro-roughness that enhances adhesion. This is especially important for molds used in high-temperature molding processes, where coatings must withstand extreme conditions while maintaining their integrity.
Advanced sandblasting systems for molding applications utilize computer numerical control (CNC) to precisely target specific areas of complex mold geometries, ensuring uniform coverage and consistent results. This level of control is essential for producing molds that will consistently replicate the desired surface characteristics in high-volume molding production.
Abrasive Media Selection
Selection based on mold material hardness, desired surface texture, and specific molding application requirements to achieve optimal results.
Process Parameters
Pressure, distance, and exposure time are carefully controlled to ensure consistent surface modification across complex mold geometries.
Quality Control
Surface profilometry and visual inspection ensure sandblasted molds meet precise specifications for subsequent molding operations.
Electrochemical Machining
Electrochemical machining (ECM) represents a sophisticated family of non-traditional manufacturing processes that utilize the principles of electrolysis to shape metal components with exceptional precision. These processes offer unique advantages in molding applications, particularly for complex geometries and hard-to-machine materials that challenge conventional machining methods.
Electrolytic Machining
Electrolytic machining (EM) is a precision manufacturing process that removes material from conductive workpieces through controlled electrochemical reactions, making it ideal for producing complex mold components with high accuracy. Unlike mechanical processes, EM produces no tool wear and generates no heat-affected zones, preserving the material properties critical for reliable molding performance.
In the EM process, the mold workpiece serves as the anode, while a specially designed tool acts as the cathode. Both are submerged in an electrolyte solution, and when an electric current passes through the circuit, metal ions are dissolved from the workpiece and carried away by the electrolyte. The shape of the cathode tool is the inverse of the desired mold geometry, allowing for precise replication of complex shapes.
Electrolytic Polishing
Electrolytic polishing is an electrochemical process that refines metal surfaces to achieve exceptional smoothness and luster, making it highly valuable for critical molding applications where surface finish directly impacts product quality. This process effectively removes surface imperfections, micro-burrs, and contaminants while creating a passive oxide layer that enhances corrosion resistance.
In molding applications, electrolytic polishing produces surfaces with lower friction coefficients than mechanical polishing, improving material flow and release properties in the mold cavity. This results in reduced cycle times and fewer defects in molded products, particularly for high-gloss and transparent components where optical quality is paramount.
Electrochemical Grinding
Electrochemical grinding (ECG) combines electrochemical dissolution with mechanical abrasion to achieve precise material removal, offering distinct advantages for hard and difficult-to-machine materials commonly used in molding applications. This hybrid process allows for high-precision shaping of hardened tool steels and superalloys that would quickly wear conventional grinding tools.
In ECG, the majority of material removal (typically 90%) occurs through electrochemical action, with the grinding wheel primarily serving to remove the oxidized material and maintain the required dimensional accuracy. This results in minimal tool wear, reduced heat generation, and exceptional surface finishes ideal for precision molding components that demand tight tolerances and superior performance.
Electroforming
Electroforming is a specialized electrochemical process that builds up metal layers onto a mandrel to create precise components, offering unique capabilities for producing complex mold inserts and cavities with exceptional detail replication. This additive manufacturing approach allows for the creation of features with sub-micron precision, making it invaluable for micro-molding and high-precision molding applications.
In the electroforming process, a mandrel with the desired surface geometry is submerged in an electrolyte bath and made cathodic. Metal ions from the solution are deposited onto the mandrel surface, gradually building up to the required thickness. Once complete, the mandrel is removed (either mechanically or through dissolution), leaving a precise metal component that perfectly replicates the mandrel's surface details – a capability that revolutionizes certain specialized molding applications.
Rapid Tooling
Rapid tooling represents a paradigm shift in mold manufacturing, leveraging advanced technologies to significantly reduce the time and cost associated with traditional mold making while maintaining the precision required for high-quality molding. This innovative approach bridges the gap between prototyping and full-scale production, enabling faster time-to-market for new products while providing valuable insights into molding process optimization.
Applications of Rapid Tooling
Rapid tooling has transformed the product development landscape, offering versatile solutions across various stages of the manufacturing lifecycle. In the automotive industry, rapid tooling enables the production of low-volume custom components and functional prototypes that can withstand the rigors of real-world testing, providing valuable data before committing to expensive production tooling for high-volume molding.
Consumer product manufacturers leverage rapid tooling to accelerate time-to-market, creating limited production runs for market testing and promotional purposes. This approach allows brands to gather consumer feedback and refine designs before investing in full-scale production molds, reducing the risk of market failure.
Medical device manufacturers benefit from rapid tooling's ability to produce complex, patient-specific components with tight tolerances, supporting both prototyping and small-batch production of specialized medical equipment. The technology's flexibility also facilitates compliance with evolving regulatory requirements through faster design iterations and validation cycles.
Classification and Basic Principles
Rapid tooling encompasses several distinct approaches, each with unique principles and applications in the molding industry. Direct rapid tooling involves creating mold inserts directly from CAD data using additive manufacturing processes such as selective laser sintering (SLS), selective laser melting (SLM), or binder jetting, eliminating the need for traditional machining.
Indirect rapid tooling, the more common approach, utilizes patterns created through additive manufacturing to produce molds using traditional materials like tool steel or aluminum. This category includes processes such as investment casting, spray metal forming, and silicone rubber molding, each offering different balances of speed, cost, and mold durability.
The fundamental principle uniting all rapid tooling methods is the layer-by-layer construction or formation of mold components based on digital models, enabling complex geometries that would be difficult or impossible to achieve with conventional methods. This digital-to-physical workflow reduces material waste, eliminates many traditional manufacturing constraints, and enables unprecedented design freedom in molding applications.
Rapid Tooling Process Flow
The rapid tooling workflow begins with comprehensive design and analysis, leveraging CAD software to create detailed 3D models of the desired mold components. These digital models undergo rigorous simulation to optimize cooling channels, gating systems, and ejection mechanisms – critical factors for successful molding performance.
Design Optimization
CAD model refinement for rapid manufacturing compatibility and molding performance
Pattern or Direct Fabrication
Additive manufacturing of patterns or direct production of mold components
Post-Processing
Finishing operations to achieve required surface quality and dimensional accuracy
Mold Assembly
Integration of components with standard mold bases and hardware
Testing & Validation
Molding trials and performance verification before production use
High-Speed Machining
High-speed machining (HSM) has revolutionized mold manufacturing by enabling unprecedented levels of productivity, precision, and surface quality in the production of complex molding components. This advanced manufacturing technology utilizes specialized machine tools, cutting tools, and strategies to achieve significantly higher material removal rates than conventional machining while maintaining tight tolerances essential for precision molding.
In molding applications, HSM is defined not just by high spindle speeds (typically 15,000 RPM or higher), but by the combination of high cutting velocities, high feed rates, and optimized chip loads that characterize the process. This unique combination results in smaller,更容易排出的切屑, reduced cutting forces, and lower heat generation – all critical factors for maintaining the dimensional stability of mold components during machining.
The benefits of high-speed machining for molding applications are multifaceted. The reduced cutting forces allow for more precise machining of thin-walled mold features without deflection, while the lower heat input minimizes thermal distortion and preserves the material properties of heat-sensitive tool steels commonly used in molding. Additionally, the superior surface finishes achieved with HSM often eliminate or reduce the need for subsequent polishing operations, shortening overall mold production timelines.
High-speed machining centers for mold making are equipped with advanced features including high-dynamic servo systems, rigid machine structures, and sophisticated cooling systems to manage the unique demands of the process. These machines are typically paired with ultra-hard cutting tools made from materials such as polycrystalline diamond (PCD) and cubic boron nitride (CBN) that can withstand the extreme conditions of high-speed cutting while maintaining their cutting edge integrity.
The adoption of high-speed machining has significantly compressed mold lead times while improving quality, enabling manufacturers to respond more quickly to market demands for new molding solutions. When combined with advanced CAM software that generates optimized toolpaths specifically for high-speed operations, HSM delivers consistent, repeatable results that are transforming the economics of mold manufacturing.
Key Parameters in High-Speed Mold Machining:
Spindle Speeds
Typically 15,000 to 60,000 RPM, with specialized machines reaching 100,000 RPM for micro-molding applications requiring extreme precision.
Feed Rates
Up to 100 m/min or higher, with rapid traverse rates exceeding 50 m/min to minimize non-cutting time between machining operations.
Tool Materials
Carbide, ceramic, CBN, and PCD tools designed to maintain cutting edge integrity at extreme speeds and temperatures.
Toolpath Strategies
Constant chip load, trochoidal milling, and high-efficiency machining techniques optimized for minimal tool wear and maximum material removal.
Cooling Systems
High-pressure coolant delivery (up to 1000 psi) and advanced mist systems to manage heat and improve chip evacuation during high-speed cutting.
Accuracy & Repeatability
Positioning accuracy of ±0.0001" (2.5 μm) or better, with thermal compensation systems maintaining precision during extended machining cycles.
Molding Technology Comparison Matrix
| Technology | Precision | Surface Finish | Material Compatibility | Production Speed | Cost Efficiency | Typical Molding Applications |
|---|---|---|---|---|---|---|
| CNC Engraving | ±0.001mm | 0.4-1.6μm Ra | High | Medium | Medium | Intricate mold details, texturing |
| Chemical Etching | ±0.01mm | 1.6-3.2μm Ra | Medium | High (batch) | High (volume) | Surface textures, logos, vents |
| Polishing | ±0.0005mm | <0.025μm Ra | High | Low | Low-High | High-gloss surfaces, optical molding |
| Sandblasting | ±0.05mm | 1.6-6.3μm Ra | High | High | High | Texture preparation, cleaning |
| Electrochemical | ±0.002mm | 0.025-0.8μm Ra | Medium | Medium | Medium | Complex shapes, hard materials |
| Rapid Tooling | ±0.01-0.1mm | 0.8-3.2μm Ra | Variable | Very High | High (prototyping) | Short-run molding, prototypes |
| High-Speed Machining | ±0.001mm | 0.4-1.6μm Ra | High | Very High | Medium-High | Complex molds, production tooling |
Advancing Molding Excellence Through Technology
The diverse array of mold processing technologies presented here represents the cutting edge of modern manufacturing, each offering unique advantages that contribute to the production of high-quality molding solutions. From the micron-level precision of CNC engraving to the rapid turnaround of advanced tooling methods, these technologies collectively enable the creation of molds that meet the ever-increasing demands of industries ranging from automotive and aerospace to medical and consumer products.
As materials science and digital manufacturing continue to evolve, these processing technologies will further advance, enabling even greater precision, efficiency, and design freedom in molding applications. The integration of these techniques, combined with advanced simulation and quality control systems, ensures that modern mold manufacturing can meet the most challenging requirements while maintaining the cost-effectiveness essential for competitive production.
