The Complete CNC Machining Workflow for Mold Parts
The production of high-quality mold components requires a precise, well-orchestrated workflow that combines advanced machinery, sophisticated programming, and expert knowledge. Our comprehensive process ensures that every mold part meets the strictest tolerances and performance requirements, whether for automotive, aerospace, medical, or consumer goods applications.
From the selection of appropriate CNC machining equipment to the intricate details of CNC program编制 and the specialized techniques of UG-based CNC programming, each step in our process is optimized for maximum efficiency and precision. This integrated approach is particularly valuable in custom injection molding, where the quality of mold components directly impacts the final product's integrity and performance.

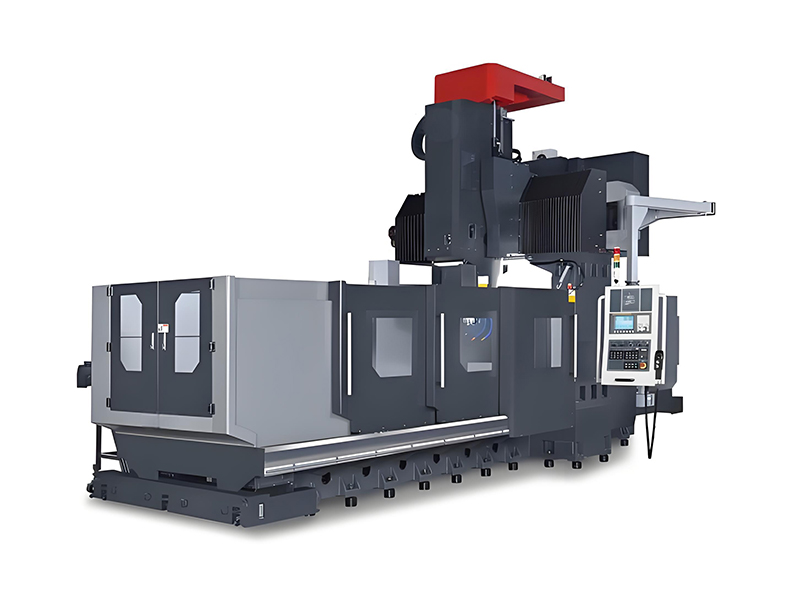

CNC Machining Equipment
The foundation of any successful precision machining operation is the quality and capability of its equipment. For mold component manufacturing, we employ a comprehensive range of advanced CNC machines specifically selected for their ability to produce complex geometries with exceptional accuracy.
Our equipment lineup includes vertical machining centers (VMCs), horizontal machining centers (HMCs), electrical discharge machines (EDMs), wire EDMs, and multi-axis turning centers. Each machine type offers unique advantages for specific mold components, ensuring that we can handle even the most challenging part geometries.
In custom injection molding applications, where mold cavities must be precisely formed to produce consistent parts, our high-precision machining centers deliver the necessary accuracy—often achieving tolerances as tight as ±0.0001 inches. This level of precision ensures that molds will produce parts that meet exact specifications, reducing waste and improving production efficiency.
Our vertical machining centers are equipped with high-speed spindles (up to 20,000 RPM) and rapid traverse rates, making them ideal for efficiently producing complex 3D surfaces common in mold components. The inclusion of advanced tool changers (up to 40 tools) minimizes setup times and maximizes production throughput.
For larger mold bases and more complex components, our horizontal machining centers provide superior chip evacuation and improved access to multiple faces of the workpiece without re-fixturing. This capability is particularly valuable in producing large mold frames used in custom injection molding for automotive and appliance applications.
Electrical discharge machines (EDMs) play a critical role in mold making, allowing for the precise machining of hardened materials and complex shapes that would be difficult or impossible to produce with traditional cutting tools. Our sinker EDMs can create intricate cavities with excellent surface finishes, while our wire EDMs produce precise, burr-free cuts for complex part features and tight tolerance details.
Our CNC Equipment Specifications
Vertical Machining Centers
- X/Y/Z Travel: Up to 60" × 30" × 30"
- Spindle Speed: 8,000 - 20,000 RPM
- Positioning Accuracy: ±0.0001"
Horizontal Machining Centers
- X/Y/Z Travel: Up to 80" × 40" × 40"
- Spindle Speed: 6,000 - 15,000 RPM
- Automatic Pallet Changers
EDM Equipment
- Sinker EDM: Up to 30" × 20" workpieces
- Wire EDM: ±0.00005" positional accuracy
- Surface finish capability: 0.08 Ra
Equipment Maintenance Protocol
All our CNC equipment undergoes rigorous daily, weekly, and monthly maintenance checks to ensure consistent performance. This includes calibration verification, lubrication, spindle health checks, and software updates—critical factors in maintaining the precision required for custom injection molding components.
CNC Equipment Capabilities Comparison
Performance metrics across different CNC equipment types used in our mold manufacturing process
CNC Program编制
CNC program编制 is the critical bridge between design intent and physical production. This process involves creating a set of instructions that guide CNC machines through the precise movements required to transform raw material into finished mold components.
Our programming process begins with a thorough analysis of the part design, typically provided as a 3D CAD model. Programmers evaluate the geometry, material specifications, and tolerance requirements to develop an optimal machining strategy. This strategic approach is especially important in custom injection molding, where mold components must maintain precise dimensional relationships to ensure proper part formation and ejection.
The programming workflow includes several key steps: geometry verification, tool selection, cutting parameter determination, machining operation sequencing, and simulation. Each step is carefully executed to ensure efficiency, accuracy, and safety.
Geometry verification involves checking the CAD model for any anomalies or potential machining issues, such as undercuts, thin walls, or impossible tolerances. This step often reveals opportunities for design for manufacturability (DFM) improvements that can reduce production time and costs while maintaining or improving part quality.
Tool selection is based on the material being machined, the geometry of the features, and the required surface finish. For mold components, which often require fine details and superior surface quality, carbide tools with specialized coatings are commonly used to achieve longer tool life and better performance.
Cutting parameters—including spindle speed, feed rate, and depth of cut—are carefully calculated to balance material removal rate with tool life and surface finish quality. These parameters are often optimized for the specific materials used in custom injection molding tools, which can range from pre-hardened steels to high-performance alloys.
Machining operation sequencing is critical to ensure efficient material removal while maintaining part accuracy. The general approach is to remove large volumes of material first (roughing operations), followed by semi-finishing and then finishing operations. This method minimizes the impact of machining forces and heat on part geometry, ensuring that final dimensions meet specification.
CNC Programming Workflow
CAD Model Analysis
Review design intent, tolerances, and material specifications
Toolpath Generation
Create efficient, safe tool movements for each feature
Simulation & Verification
Check for collisions, overcuts, and machining errors
Post-Processing
Convert toolpaths to machine-specific G-code
Machine Setup & Run
Prepare machine, load program, and execute machining
Programming Software
- Mastercam
- Siemens NX
- SolidWorks CAM
- Esprit
Quality Checks
- Toolpath simulation
- Collision detection
- G-code verification
- First article inspection
| Material Type | Spindle Speed (RPM) | Feed Rate (IPM) | Depth of Cut (in) | Tool Material |
|---|---|---|---|---|
| Aluminum (Mold Inserts) | 8,000 - 15,000 | 100 - 300 | 0.100 - 0.250 | Carbide, TiAlN Coated |
| Pre-hardened Steel (HRC 30-35) | 3,000 - 8,000 | 50 - 150 | 0.050 - 0.150 | Carbide, TiCN Coated |
| Hardened Steel (HRC 50-55) | 1,500 - 4,000 | 20 - 80 | 0.020 - 0.080 | CBN or Ceramic |
| Stainless Steel | 2,000 - 6,000 | 30 - 100 | 0.030 - 0.100 | Carbide, TiAlN Coated |
Typical cutting parameters used in CNC programming for various mold materials, optimized for both performance and tool life in custom injection molding applications.
UG-based CNC Programming
UG-based CNC programming, utilizing Siemens NX software (formerly known as Unigraphics), represents the pinnacle of integrated CAD/CAM solutions for mold component manufacturing. This powerful platform combines advanced design capabilities with sophisticated machining functionality, enabling our programmers to create highly efficient toolpaths for even the most complex mold geometries.
One of the key advantages of UG-based programming is its seamless integration between design and manufacturing. Changes to the CAD model are automatically reflected in the CAM environment, reducing the potential for errors and streamlining the programming process. This integration is particularly valuable in custom injection molding, where design iterations are common and rapid response to changes is essential.
UG's advanced machining strategies include high-speed machining (HSM), 5-axis simultaneous machining, and rest material machining—all critical capabilities for producing complex mold components. High-speed machining techniques reduce cycle times while improving surface finish, which is especially important for mold cavities that will directly impact the surface quality of parts produced in custom injection molding processes.
The software's 5-axis machining capabilities allow for the production of complex 3D surfaces and undercuts without the need for multiple setups. This not only improves accuracy by reducing fixture-related errors but also increases productivity by minimizing setup time. For mold components with intricate cooling channels or complex parting lines, 5-axis machining is often the only feasible production method.
UG-based programming also offers powerful automation tools, including knowledge-based machining (KBM) and template-based programming. These features allow programmers to capture and reuse best practices, standardizing processes across projects and reducing programming time. For example, common mold features like ejector pin holes, leader pins, and cavity details can be programmed using standardized templates, ensuring consistency and reducing the potential for errors.
Another significant advantage of UG-based CNC programming is its advanced simulation capabilities. The software can simulate the entire machining process, including tool movements, spindle rotation, and material removal, in a virtual environment. This allows programmers to detect and resolve potential collisions, overcuts, or gouges before the program is ever run on a physical machine—saving valuable production time and reducing material waste.
In custom injection molding applications, where mold components often have complex geometries and tight tolerances, UG's advanced verification tools ensure that the machined parts will meet all design requirements. The software's dimensional analysis capabilities allow programmers to compare the simulated machined part with the original CAD model, identifying any discrepancies and making necessary adjustments before production begins.
Key Features of UG-based Programming
Integrated CAD/CAM Environment
Seamless transition between design and manufacturing
High-Speed Machining
Optimized toolpaths for efficiency and surface quality
5-Axis Machining
Complete access to complex part geometries
Advanced Simulation
Collision detection and process verification
Knowledge-Based Machining
Capture and reuse best practices for efficiency

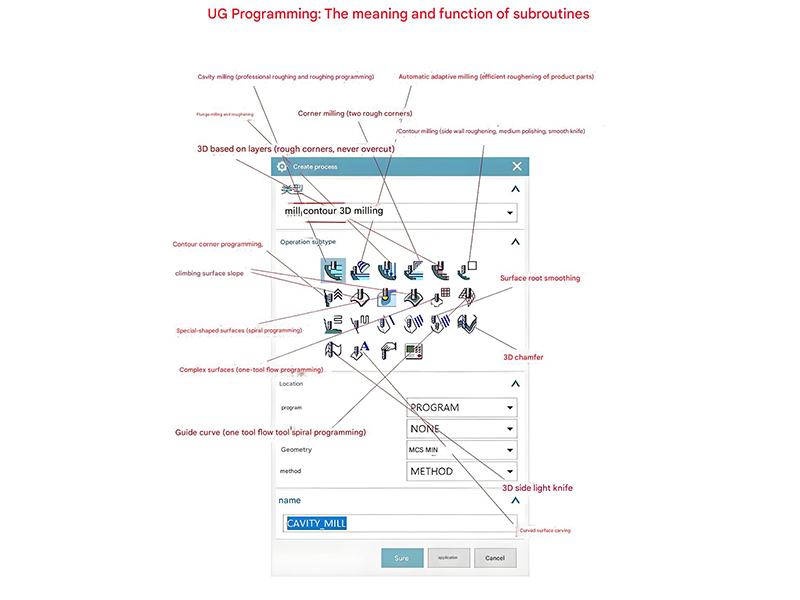

UG Machining Strategies for Mold Making
Roughing Strategies
Adaptive clearing for efficient material removal while protecting tools
Contour Machining
Precise wall finishing for mold cavities and cores
Finish Milling
High-speed surface finishing for superior mold polishability
Drilling & Hole Making
Specialized cycles for cooling channels and ejector pin holes
Benefits of UG-based CNC Programming in Custom Injection Molding
Increased Productivity
Advanced toolpath strategies and automation capabilities reduce programming and machining time by up to 30%, accelerating time-to-market for custom injection molding projects.
Improved Accuracy
Integrated CAD/CAM environment and advanced verification tools ensure mold components meet tight tolerances, critical for consistent part quality in custom injection molding.
Enhanced Capability
5-axis machining and advanced surface finishing strategies enable production of complex mold geometries that would be impossible with conventional programming methods.
Case Study: Complex Mold Core Production
A recent project required a complex mold core for a medical device component produced through custom injection molding. The part featured multiple undercuts, micro-features, and required a mirror finish.
Using UG-based CNC programming, our team was able to:
- Program the entire component in 50% less time than conventional methods
- Achieve dimensional tolerances of ±0.0002" across all critical features
- Produce the required mirror finish (0.02 Ra) without secondary polishing
- Eliminate all potential collisions through advanced simulation
The result was a mold core that produced perfect parts from the first run, reducing development time and ensuring on-time delivery for our client's critical medical device launch.
Integrated Workflow for Optimal Results
The true power of our manufacturing process lies in the seamless integration of CNC machining equipment, CNC program编制, and UG-based CNC programming. This integrated approach ensures that each step complements the others, resulting in mold components of exceptional quality and consistency—essential for successful custom injection molding operations.
CNC Machining Equipment
High-precision machines provide the foundation, with capabilities matched to the requirements defined in the programming phase, ensuring that the toolpaths generated through UG-based programming can be executed with exacting accuracy.
CNC Program编制
The programming process acts as the bridge between design and manufacturing, translating 3D models into machine instructions that leverage the full capabilities of our equipment while utilizing UG's advanced toolpath strategies.
UG-based CNC Programming
This advanced software platform optimizes the entire process, ensuring that programming takes full advantage of machine capabilities while providing the verification tools needed to ensure perfect execution.
Why This Integrated Approach Matters in Custom Injection Molding
In custom injection molding, the quality of the mold directly determines the quality of the final product. Our integrated workflow ensures that:
Mold components meet exact dimensional requirements, ensuring proper fit and function
Surface finishes are optimized for part release and aesthetic quality
Cooling channels are precisely positioned for optimal cycle times
Complex geometries can be accurately reproduced for consistent part quality
Mold life is maximized through proper material selection and machining techniques
Production timelines are met through efficient programming and machining processes
Quality Assurance Throughout the Process
Quality is integrated into every step of our CNC machining process, ensuring that each mold component meets the strictest standards required for custom injection molding applications. Our comprehensive quality assurance program includes both in-process verification and final inspection.
In-Process Verification
Dimensional checks at critical stages of machining to ensure conformance to specifications
Advanced Metrology
Coordinate Measuring Machines (CMM) with accuracy of ±0.00005" for final inspection
Surface Finish Analysis
Laser profilometers to verify surface roughness and texture requirements
Material Verification
Spectroscopy and hardness testing to confirm material specifications
Documentation
Comprehensive inspection reports with dimensional data and conformance verification
Our quality management system is ISO 9001:2015 certified, ensuring consistent processes and reliable results for all custom injection molding components.
